Diesel Heater Wall Port – Exterior Heated-Air Pass-Through for Campers & Trailers
Diesel Heater Wall Port – Exterior Heated-Air Pass-Through for Campers & Trailers
Couldn't load pickup availability
🔥 Diesel Heater Heated-Air Pass-Through Kit for Campers, Trailers & Workshops
Heated cabin air only. This component is not for combustion exhaust.
Exterior kit: choosing your hose option
The Heater Hose Diameter selector offers 3 Inch (75MM), 3.5 Inch (90MM) and 60 MM (Proplex). These labels identify the heater-hose options; they do not establish the wall-port diameter or cutout for this kit.
Before cutting: confirm the wall-port diameter and required cutout for your selected exterior-kit option with Bend 3DP. The lightweight kit's hose-to-port mapping should not be used to choose this kit's cutout.
Route heated cabin air through a flat wall in your truck bed camper, teardrop trailer, workshop, or similar build using this 3D-printed pass-through kit.
⸻
🧱 Built to Last
Each kit is 3D printed using PET-CF, a carbon-fiber-reinforced material known for its exceptional strength and heat resistance.
• 3D printed in Siraya Tech Fibreheart PET-CF, reinforced with 15% carbon fibre.
• Real-world performance: Diesel heaters typically output around 95 °C.
• Weatherproof: Tested in direct sunlight and extreme cold — it stays strong, stable, and looking great through years of use.
⸻
⚡ Fast, Secure, and Smart Design

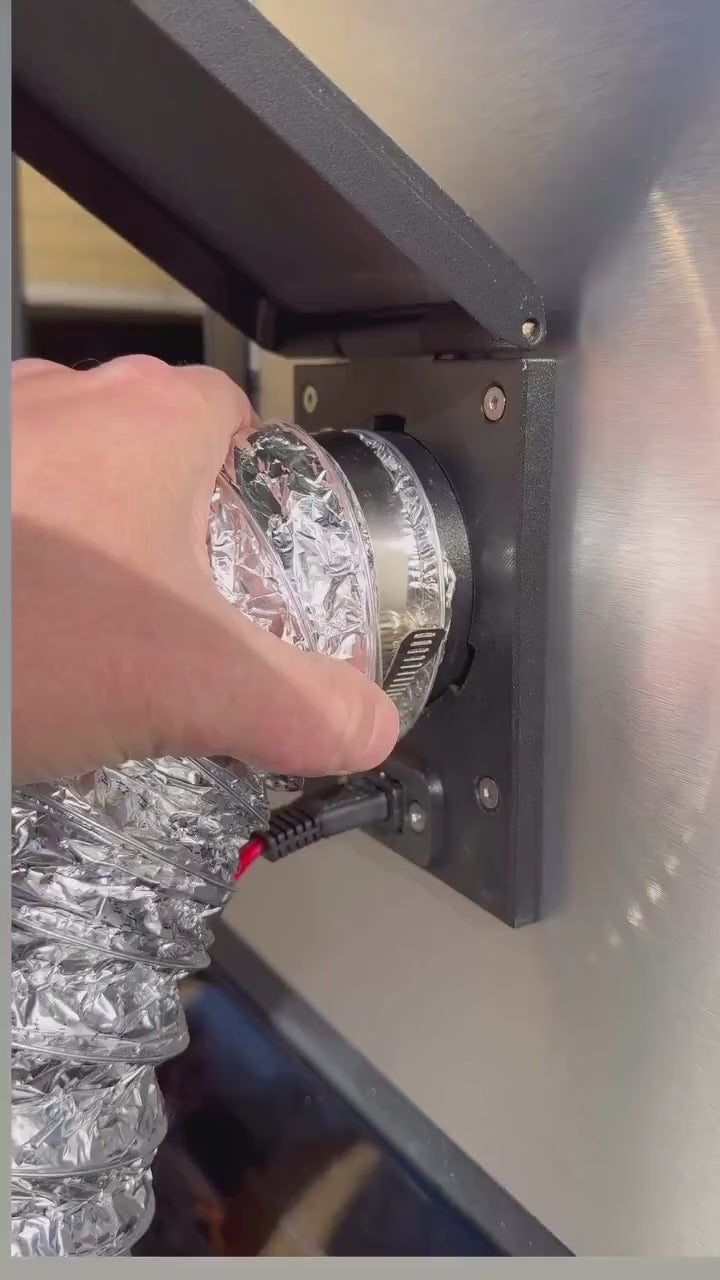

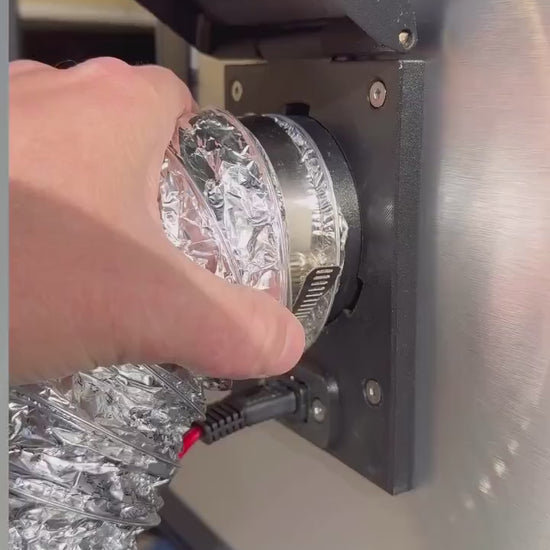

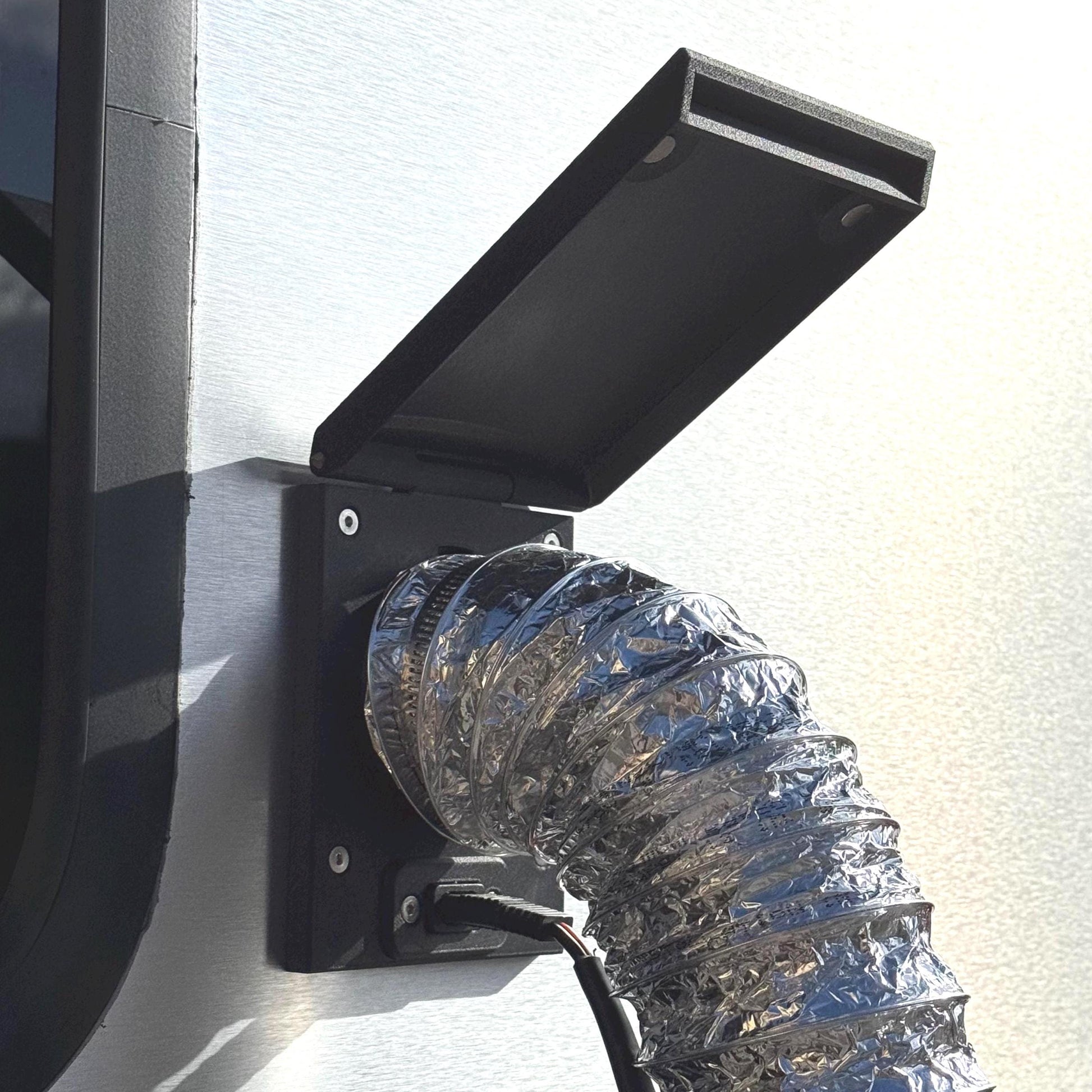

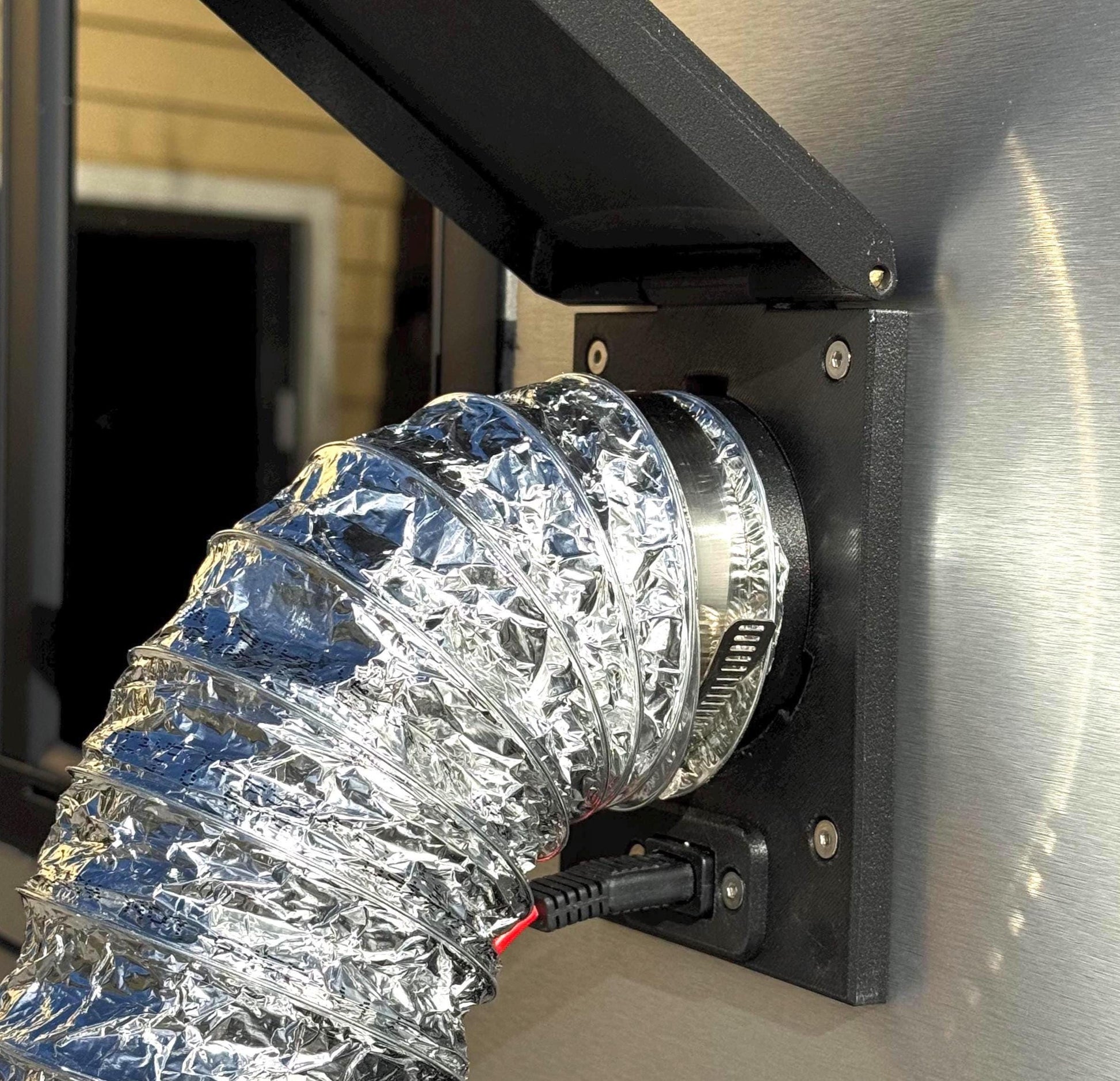

• Twist-Lock Hose Adapter: Quickly attach your heater hose without tools or hose clamps.

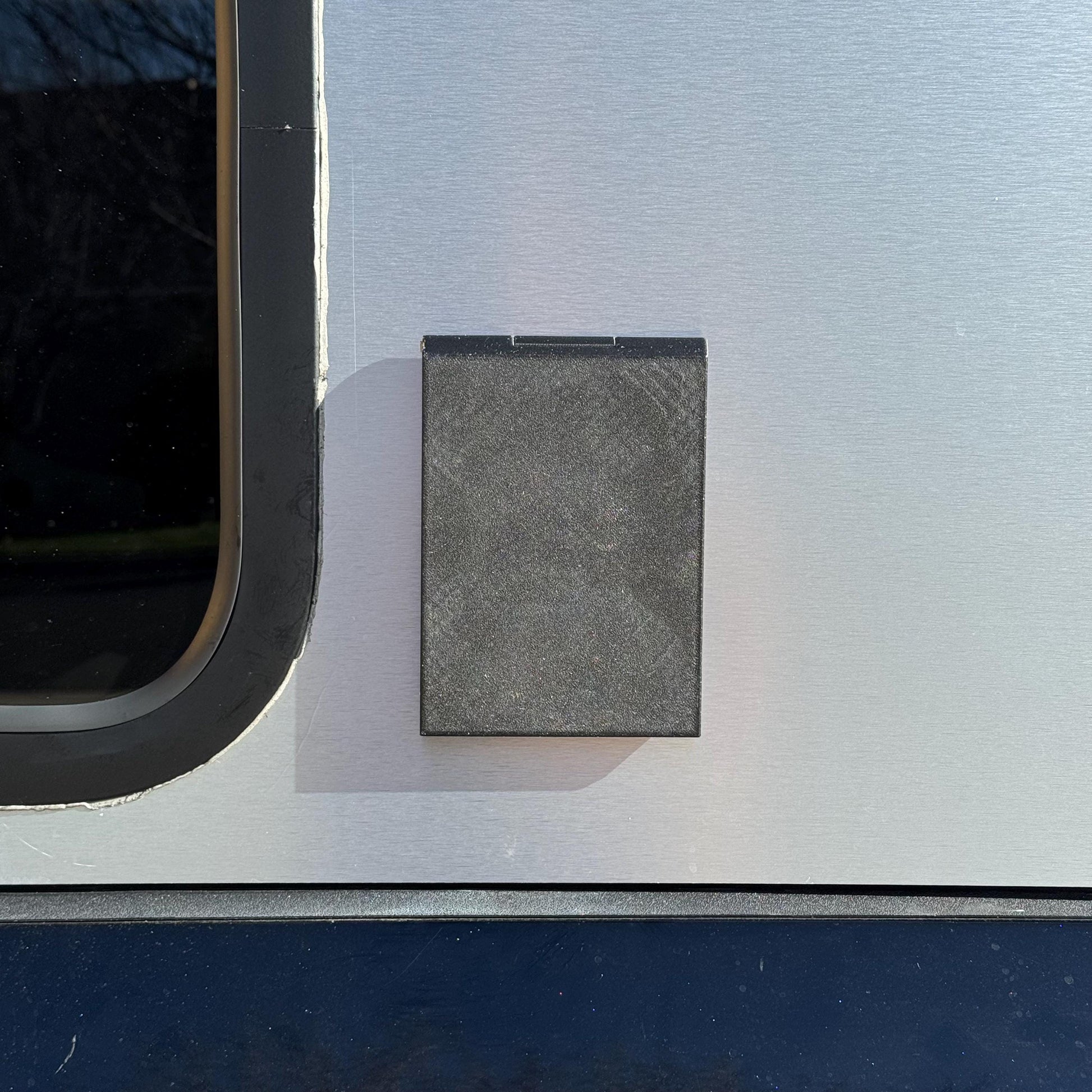

• Magnetic Lid: Keeps your exterior panel securely closed during travel.
• 12V Quick-Connect Port: Easily connect your heater power supply from inside your camper or build.
⸻
📦 What’s Included

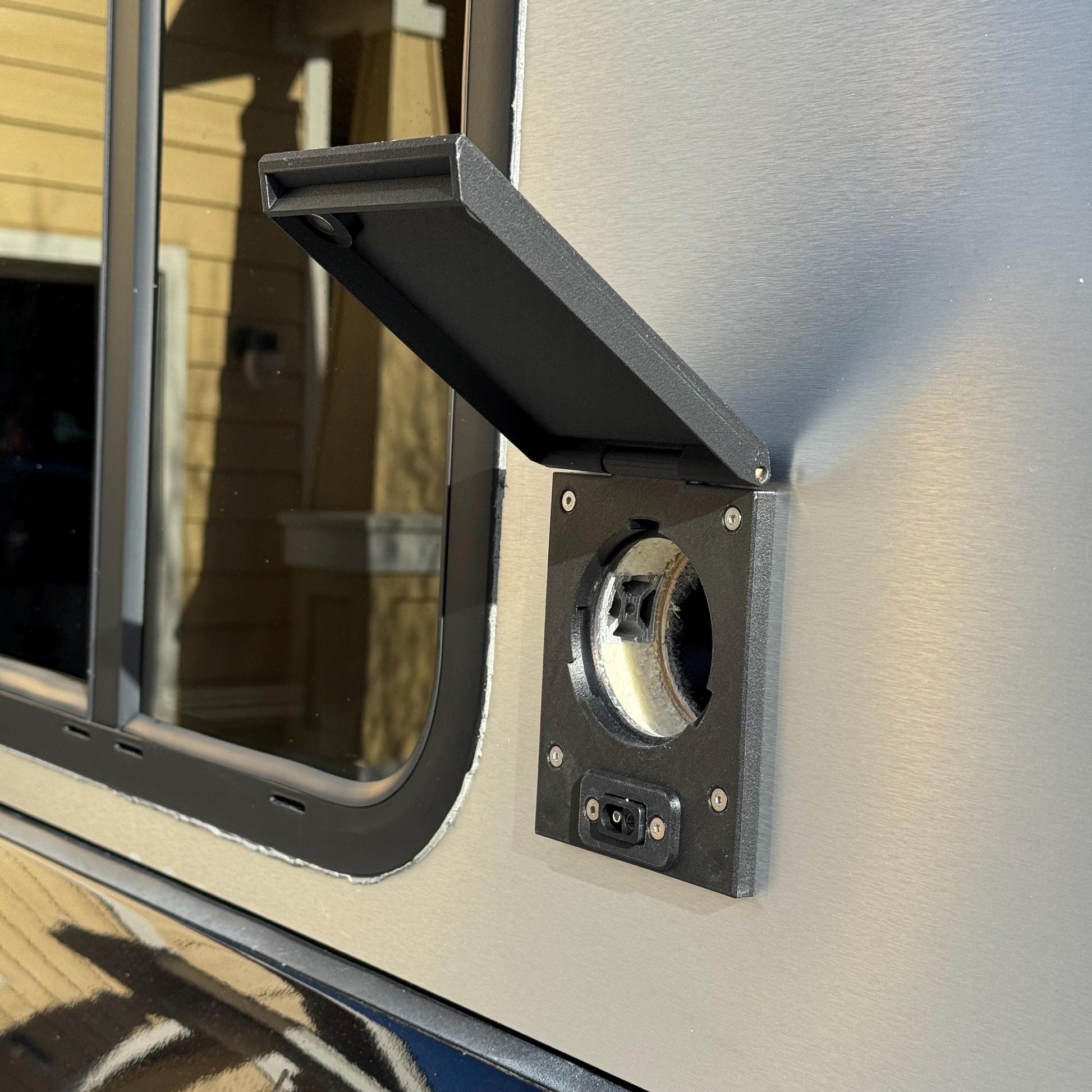

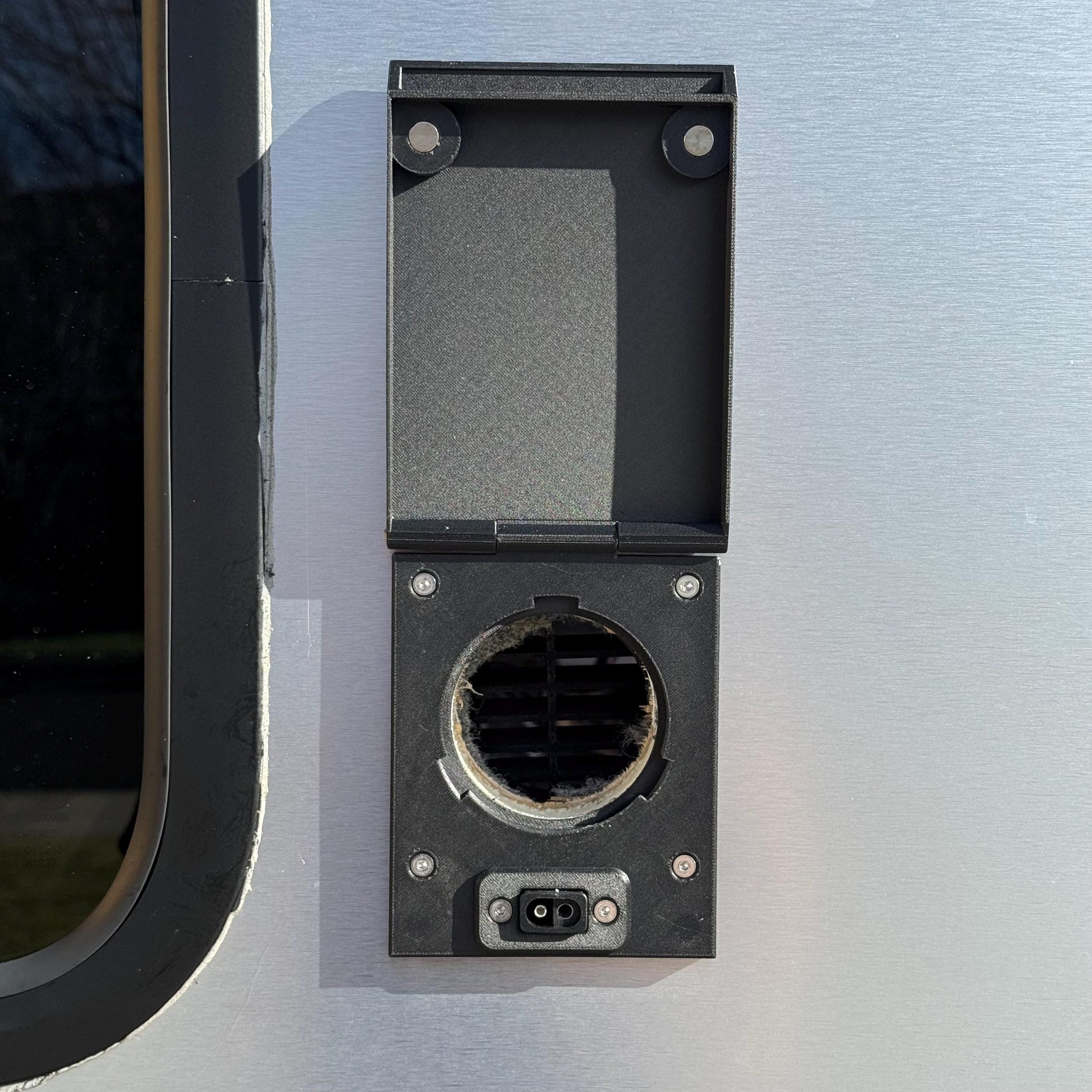

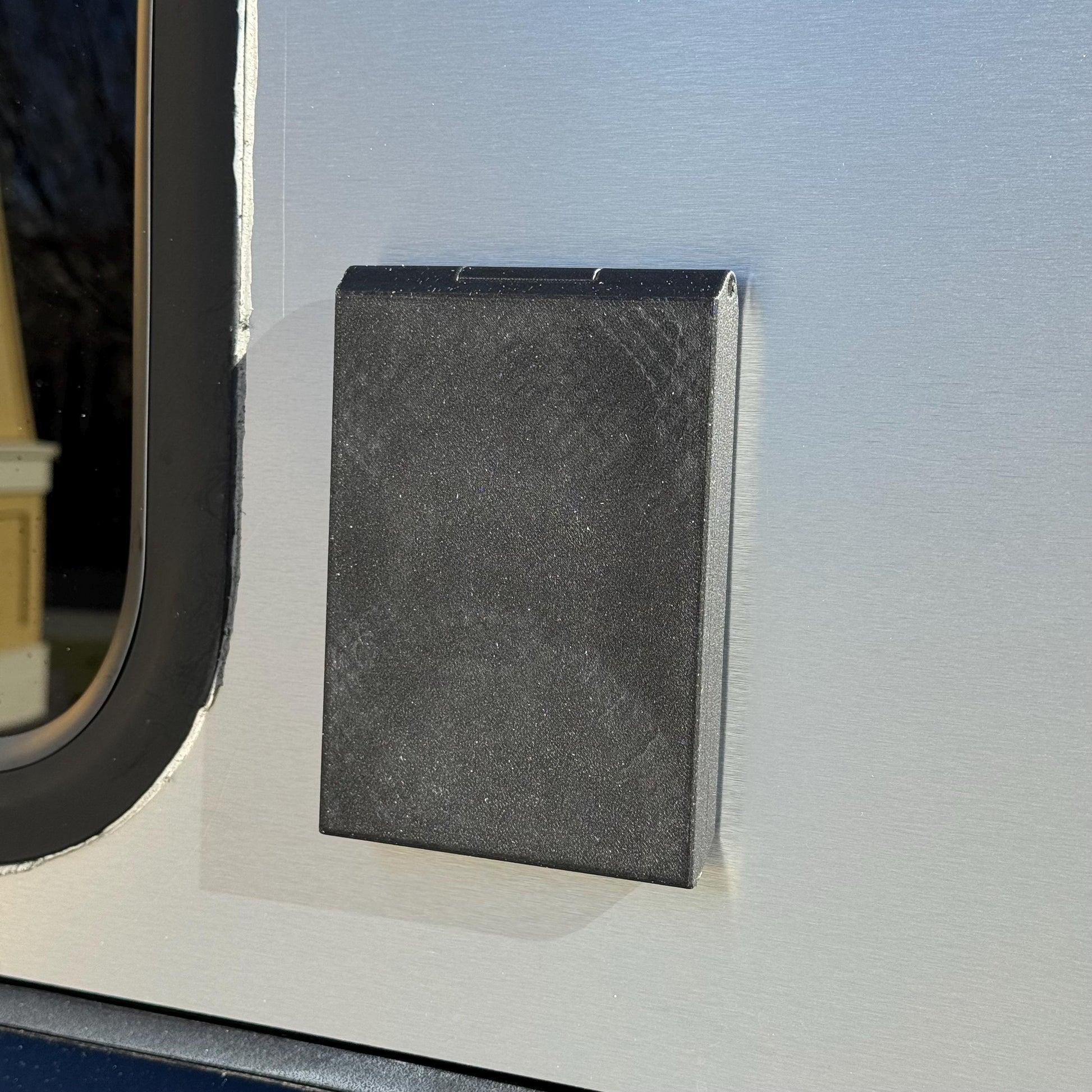

• Exterior mounting panel with magnetic-latching lid

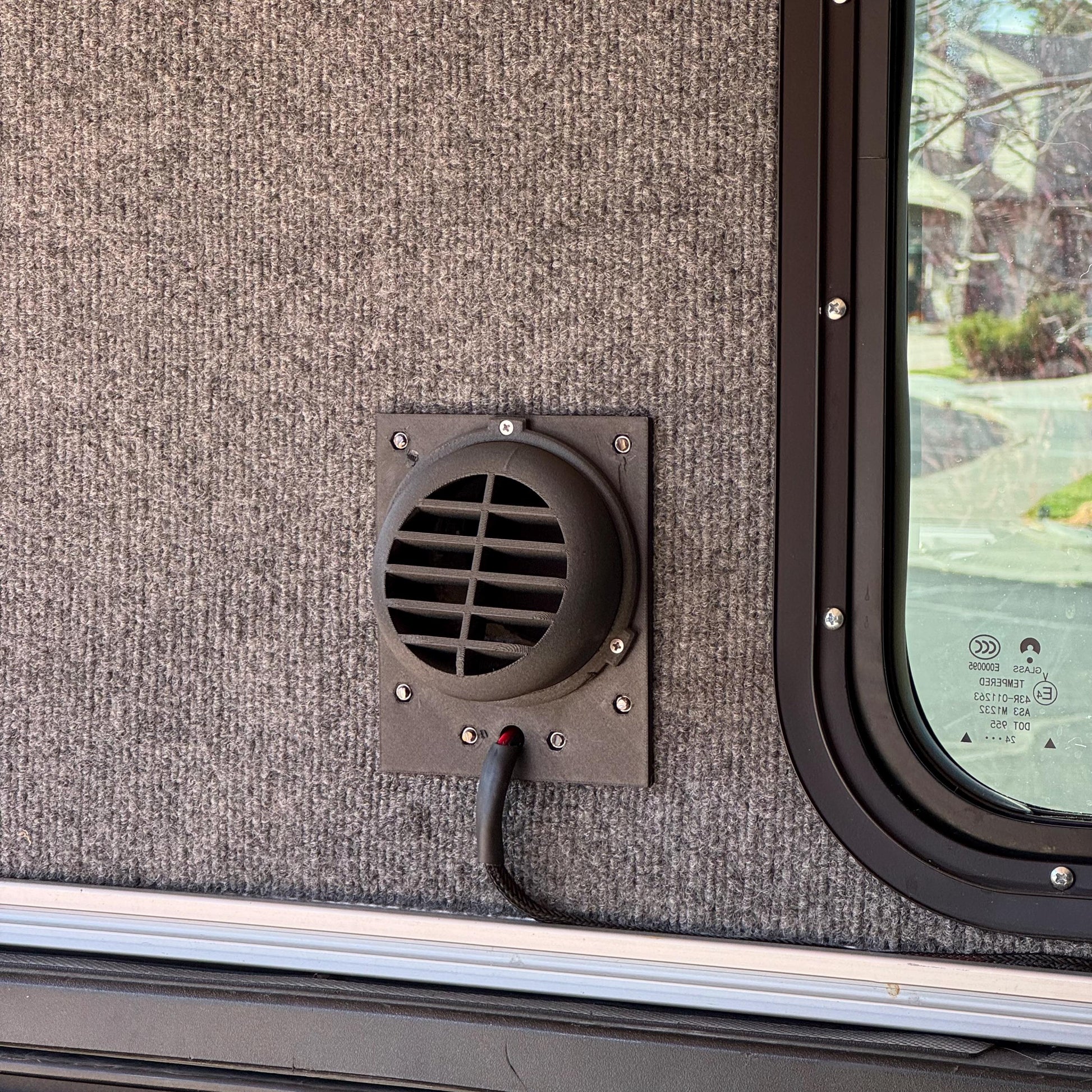

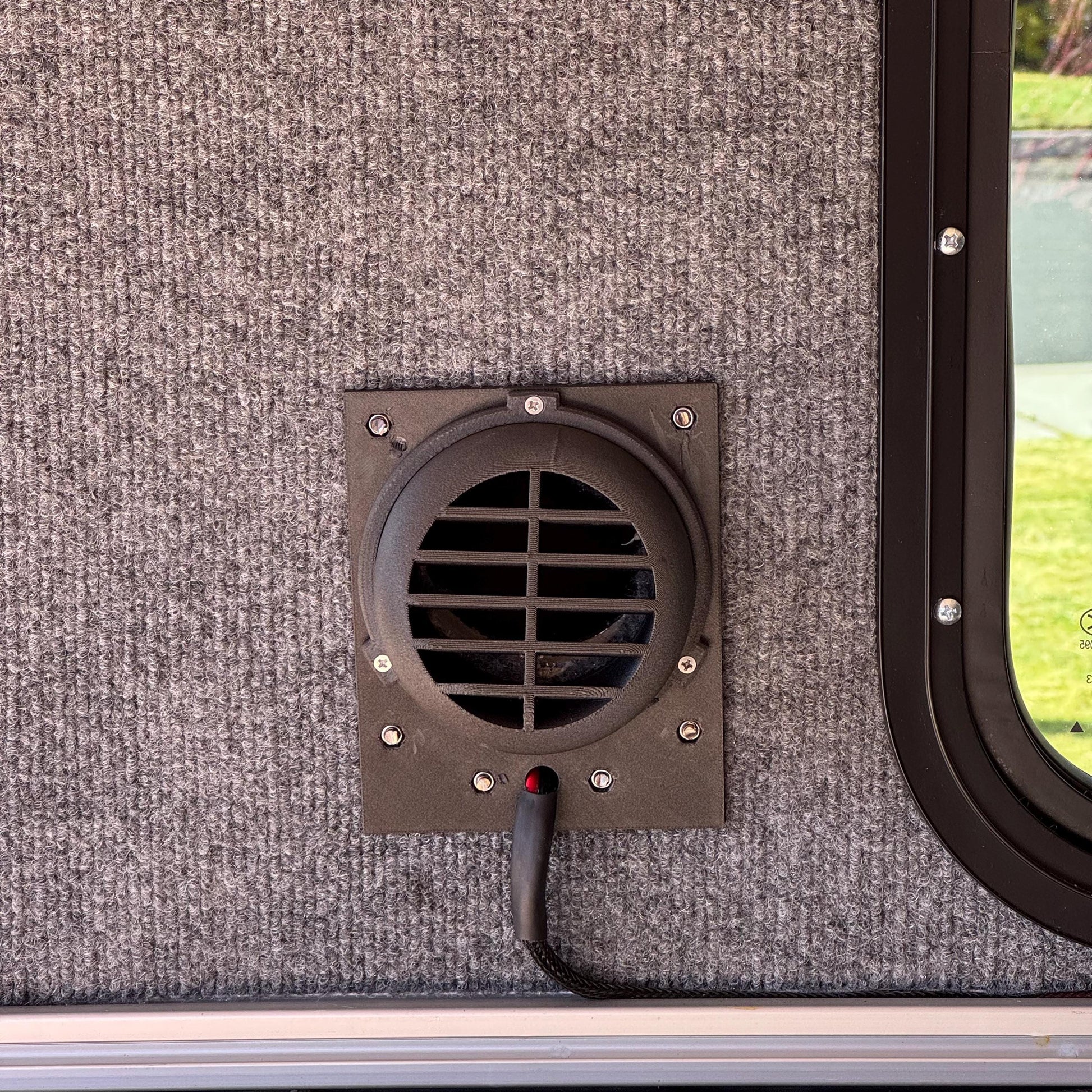

• Interior panel with adjustable vent
• Quick-attach hose coupler (available in 3” or 3.5” — custom sizes available upon request)
• Mounting hardware
• 12GA 12V wiring pigtail (male & female ends)
Made to order. Ships in 4–7 days.
Compare Bend 3DP heater-port options
| Product | Use and included components |
|---|---|
| Lightweight wall-port kit | Choose a 3-inch or full-size 3.5-inch wall port and a directional interior vent or hose hookup. Includes the selected heater-hose quick-connect fitting, wall-port components, interior connection and mounting hardware. |
| Exterior wall-port kit with 12V connection | Includes an exterior panel with magnetic-latching lid, adjustable interior vent, selected hose coupler, mounting hardware and 12GA 12V wiring pigtail. Confirm the selected variant's wall-port diameter before choosing a cutout. |
| Replacement quick-connect fitting | For replacing the fitting on an existing Bend 3DP heater-port setup. Choose the fitting that matches your existing hose and port connection. This is the fitting listing, not a complete wall-port kit. |
All three products are for heated cabin air only, not combustion exhaust.
Diesel heater FAQ
What size hole-saw cutout does the wall port need?
A 3-inch port needs a 2.75-inch hole-saw cutout. A 3.5-inch port needs a 3.25-inch cutout. Choose the cutout from the wall-port diameter, not the hose diameter.
Does the hose-size option confirm the wall-port cutout?
This product’s selector lists heater hose diameter. Confirm the wall-port diameter for your chosen option before cutting, including the 60 MM (Proplex) option. Hose diameter alone does not establish the cutout size.
When will my order ship?
Made to order. Ships in 4–7 days.
